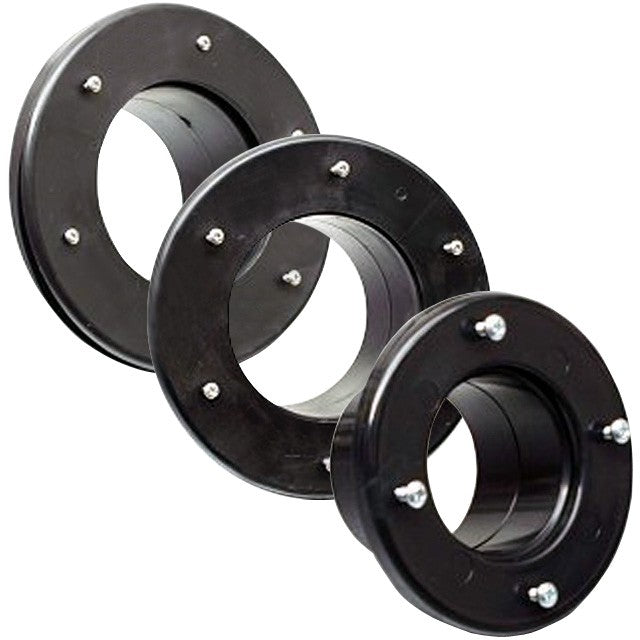

Flanged Tank Connectors (Black Solvent)

All our tank Black Flanged Tank connectors are supplied with self tapping stainless steel screws and are therefore ideally suited for total immersion under water.

Many inferior products use zinc plated screws and can have adverse effect under water, especially when salt or chemicals such as formalin and malachite green come into regular contact with such fixings.

The Radial Tank connector listed below is ideally suited for placement on the contoured surfaces such as a vortex, where the radial shaped design, contours snugly onto the outside surfaces leaving a close fit for final sealing of the 110 mm outlet port.

Available Sizes: 40mm - 50mm - 82mm - 110mm & 110mm Radial

O.D = Outside Diameter Of Pipe

40mm - Fits 1.5"/40mm black solvent weld pipe - (43mm O.D) - Flange = 114mm diameter

50mm - Fits 2"/50mm black solvent weld pipe - (56mm O.D) - Flange = 114mm diameter

82mm - Fits 3"/82mm black solvent weld pipe - (82mm O.D) - Flange = 154mm diameter

110mm - Fits 4"110mm black solvent weld pipe - (110mm O.D) - Flange = 198mm diameter

110mm - Radial Fits 4"/110mm black solvent weld pipe - (110mm OD) - Flange = 198mm diameter
